Standard Duty

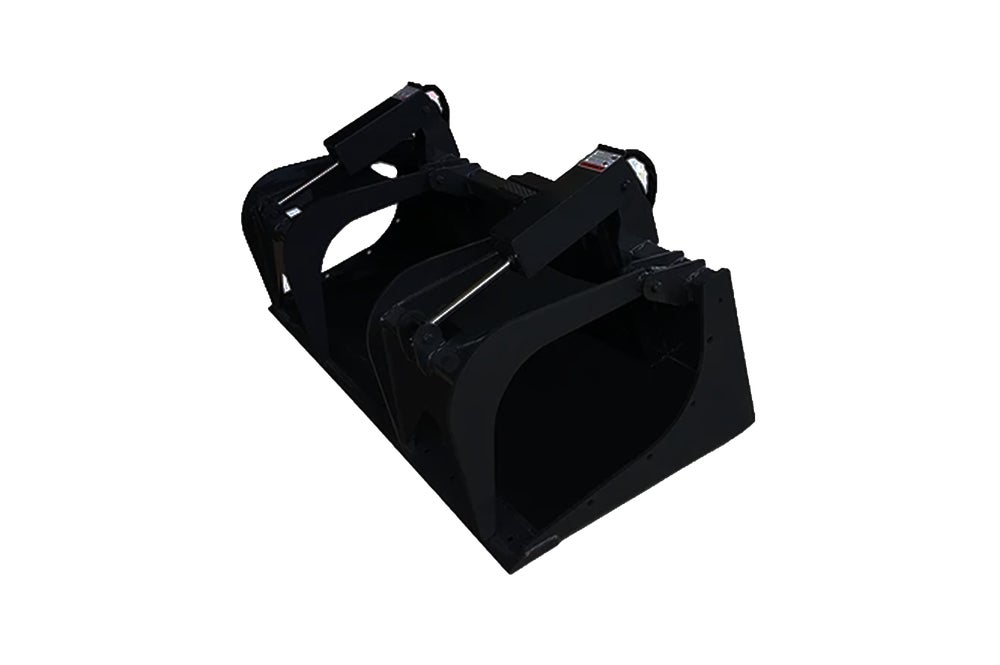

Grapple Bucket Attachment

Our Grapple Buckets are highly versatile attachments Available in a wide range of sizes, they can easily pick up logs, rocks, building/construction supplies, or any other type of debris. They are designed for up to 45 HP on standard duty and up to 65 HP on heavy duty. All our grapple buckets feature 2″ bore by 10″ stroke cylinders, with hydraulic lines routed inside the tubing to prevent tears. They are constructed with top-quality steel, oversized pins and bushings, and grease fittings at every pivot point. Each unit exceeds the lifting capacity of the skid steer it is attached to and offers optional teeth.

Product FamilyCompact Tractor Grapple Bucket
ProductCTGB48
DescriptionCT SINGLE CYL. GRAPPLE BUCKET, 48”
Cylinder Size2" x 10" 4,000 PSI
RPMRecommended for tractors up to 35 HP
Working Width48"
Weight (lbs)368
NotesGrease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge

Diagram:

Diagram of product

Skid Steer Hydraulic Flow Finder

N/A

Max Flow

N/A

Max Pressure

Additional Machine Info

3
Machine Width: N/A
Machine Height: N/A
Machine Length: N/A
Wheelbase: N/A
Operating Weight: N/A
Tipping Load: N/A
Operating Capacity: N/A
Operating Capacity (50%): N/A
Hydraulic Horsepower (Standard Flow): N/A
Hydraulic Horsepower (High Flow): N/A
