Up to 45 HP

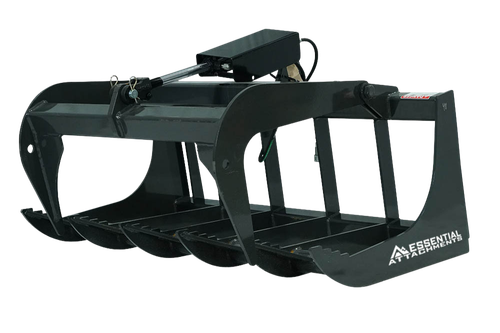

Single Cylinder Root Grapple For Tractors
The Compact Tractor Grapple Series is built for smaller machines that still need serious performance. Whether you’re hauling rocks, roots, or debris, these grapples give you strong clamping force and dependable construction without overloading your tractor.
Key Features:
- Available widths: 48″, 54″, 60″, 66″, and 72″
- Built for compact tractors 45 HP and under
- Lightweight build for better lifting capacity
| 48" Single Cylinder Root Grapple | 54" Single Cylinder Root Grapple | 60" Single Cylinder Root Grapple | 66" Single Cylinder Root Grapple | 72" Single Cylinder Root Grapple | |
|---|---|---|---|---|---|
| SKU | CTRG48 | CTRG54 | CTRG60 | CTRG66 | CTRG72 |
| Weight (Lbs.) | 310 | 320 | 323 | 333 | 367 |
| Width (") | 48 | 54 | 60 | 66 | 72 |
| Height (") | 30 | 30 | 30 | 30 | 30 |
| Length (") | 31 | 31 | 31 | 31 | 31 |
| Tine Thickness | 5/16" | Array | Array | Array | Array |
| Tine Spacing | Approx. 7-8" | Array | Array | Array | Array |
| Rated For | 35 HP and below machines | 35 HP and below machines | 35 HP and below machines | 35 HP and below machines | 35 HP and below machines |
| # Of Cylinders | 1 | 1 | 1 | 1 | 1 |
| Cylinder Size | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" |
