4 in 1 Bucket For Mini Skid Steers

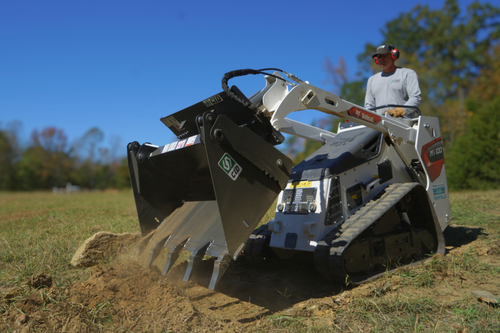

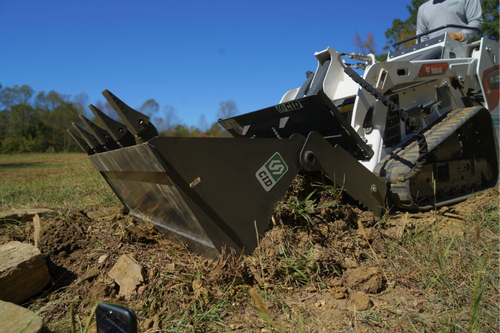

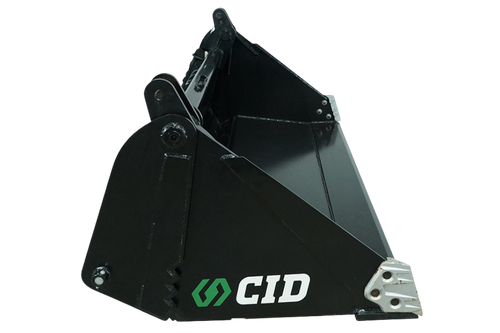

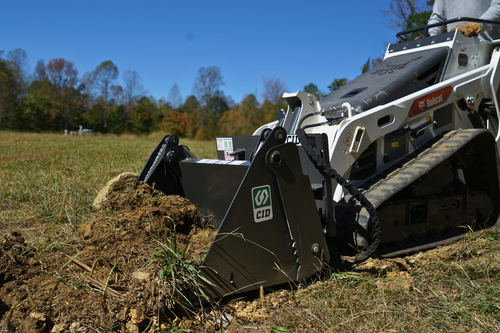

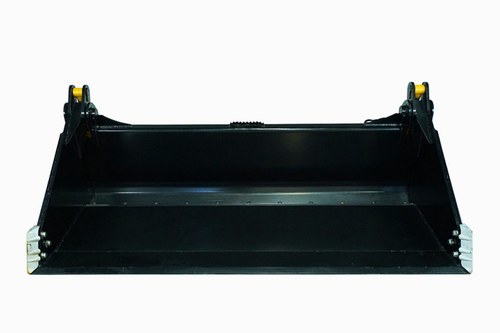

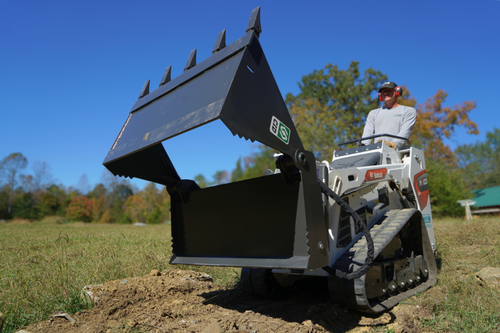

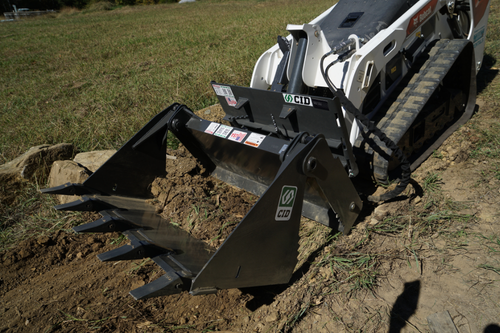

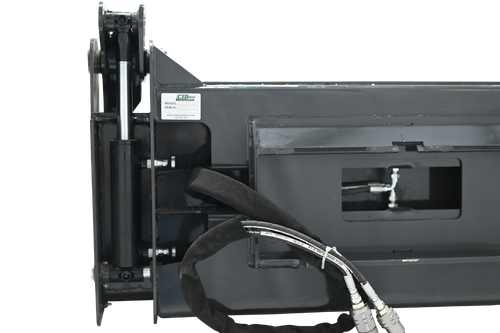

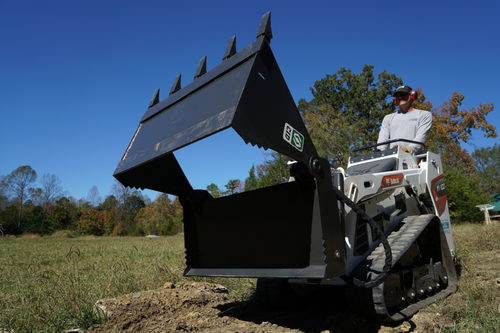

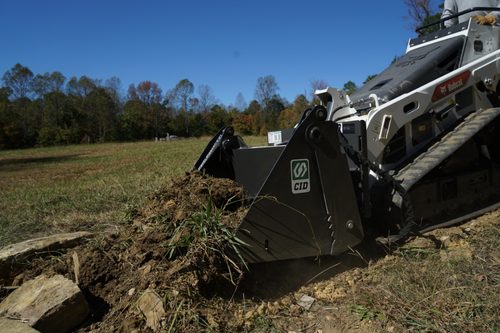

Tackle multiple jobs with one attachment using the Mini Skid Steer 4-in-1 Bucket. This bucket is designed for digging, loading, dozing, and grappling. Dual 2″ x 6″ hydraulic cylinders power the clamshell design, and a 10-gauge back wrap provides durability without unnecessary weight. Optional weld-on teeth increase digging strength, and grease fittings at every pivot point make maintenance simple.

Key Features:
• Widths available: 36″, 44″, 48″, 54″, 60″, 66″, and 72″
• Grease fittings at every pivot point for easy service
• Mount options: Dingo, Bobcat MT, and alternates available

SKU	MINI4N1-36
Weight (Lbs.)	301
Width (")	36
Cylinder Size	2" x 6"
Cutting Edge	1/2" x 4"
Bottom Wrap	1/4"

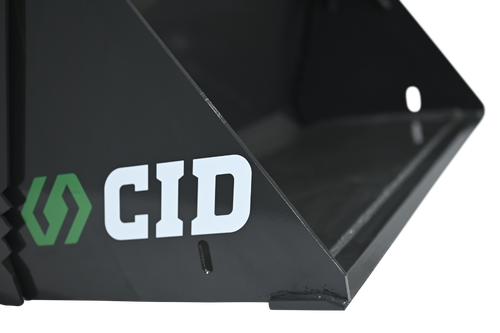

Back Wrap	10 Gauge
Weld On Teeth	Optional
Bolt on Edge	Optional
Additional Features	Grease Fittings at every pivot point
Available Mounts	Dingo, Bobcat MT, RC30, Alternates available

SKU	MINI4N1-44
Weight (Lbs.)	368
Width (")	44
Cylinder Size	2" x 6"
Cutting Edge	1/2" x 4"
Bottom Wrap	1/4"
Back Wrap	10 Gauge
Weld On Teeth	Optional
Bolt on Edge	Optional
Additional Features	Grease Fittings at every pivot point
Available Mounts	Dingo, Bobcat MT, RC30, Alternates available

SKU	MINI4N1-48
Weight (Lbs.)	380
Width (")	48
Cylinder Size	2" x 6"
Cutting Edge	1/2" x 4"
Bottom Wrap	1/4"
Back Wrap	10 Gauge
Weld On Teeth	Optional
Bolt on Edge	Optional
Additional Features	Grease Fittings at every pivot point
Available Mounts	Dingo, Bobcat MT, RC30, Alternates available

SKU	MINI4N1-54
Weight (Lbs.)	445
Width (")	54
Cylinder Size	2" x 6"
Cutting Edge	1/2" x 4"
Bottom Wrap	1/4"
Back Wrap	10 Gauge
Weld On Teeth	Optional
Bolt on Edge	Optional
Additional Features	Grease Fittings at every pivot point
Available Mounts	Dingo, Bobcat MT, RC30, Alternates available

SKU	MINI4N1-60
Weight (Lbs.)	511
Width (")	60
Cylinder Size	2" x 6"
Cutting Edge	1/2" x 4"
Bottom Wrap	1/4"
Back Wrap	10 Gauge
Weld On Teeth	Optional
Bolt on Edge	Optional
Additional Features	Grease Fittings at every pivot point
Available Mounts	Dingo, Bobcat MT, RC30, Alternates available
