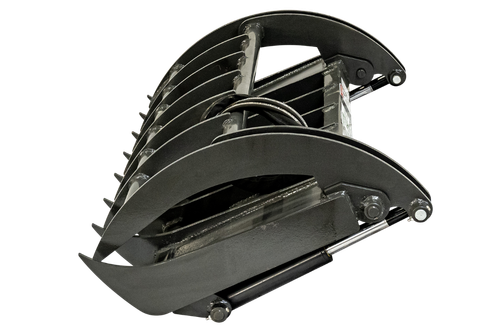

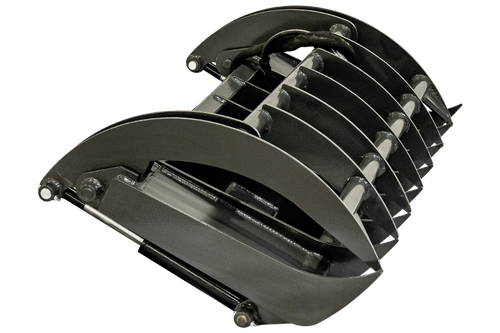

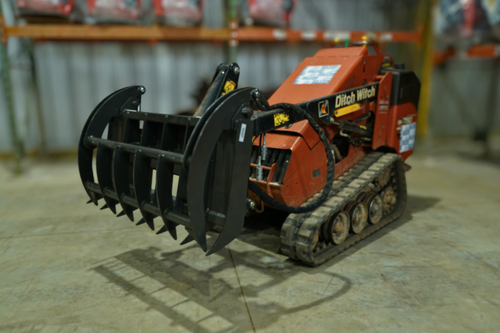

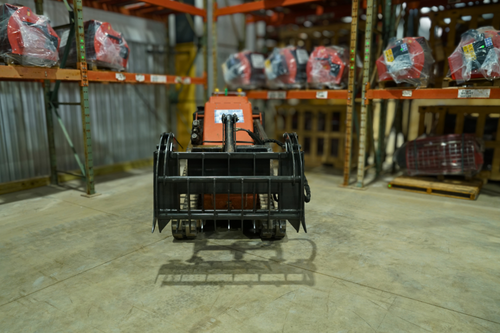

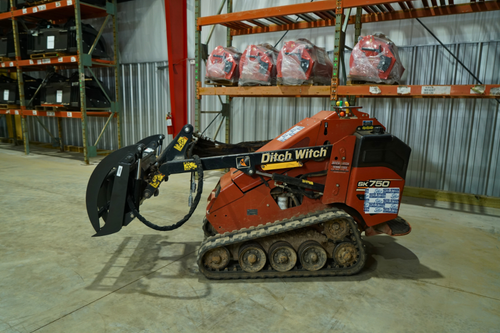

Grapple Rake For Mini Skid Steers

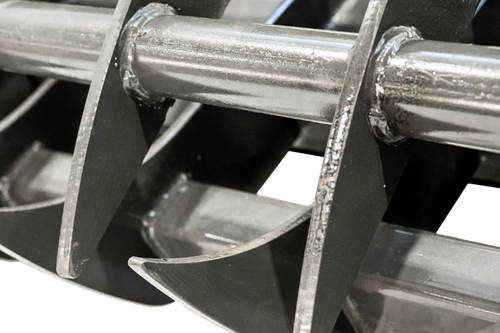

Clear brush, roots, and debris with a strong and compact grapple rake designed for mini skid steers. The Mini Skid Steer Grapple Rake features dual 2″ x 6″ hydraulic cylinders and heavy-duty 3/8″ plate construction for durability. This rake is built for tough cleanup jobs where maneuverability and strength both matter.
Key Features:
- Available widths: 44″ and 48″
- Mount options: Dingo, Bobcat MT
| Mini Grapple Rake 36" | Mini Grapple Rake 44" | Mini Grapple Rake 48" | Mini Grapple Rake 54" | Mini Grapple Rake 60" | Mini Grapple Rake 66" | Mini Grapple Rake 72" | |
|---|---|---|---|---|---|---|---|
| SKU | MINIGRDC36 | MINIGRDC44 | MINIGRDC48 | MINIGRDC54 | MINIGRDC60 | MINIGRDC66 | MINIGRDC72 |
| Weight (Lbs.) | 230 | 252 | 271 | 284 | 301 | 324 | 350 |
| Width (") | 36 | 44 | 48 | 54 | 60 | 66 | 72 |
| Open Tine Height (") | 33 | 33 | 33 | 33 | 33 | 33 | 33 |
| Depth (") | 17 | 17 | 17 | 17 | 17 | 17 | 17 |
| Cylinder Size | 2 x 6 | 2 x 6 | 2 x 6 | 2 x 6 | 2 x 6 | 2 x 6 | 2 x 6 |
| Tine Thickness (") | 5/16 | 5/16 | 5/16 | 5/16 | 5/16 | 5/16 | 5/16 |
| Rated For (HP) | 40 HP | 40 HP | 40 HP | 40 HP | 40 HP | 40 HP | 40 HP |
| Available Mounts | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available |
