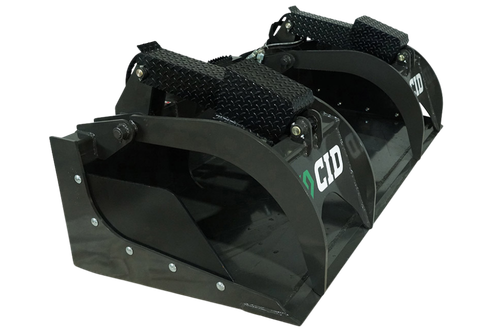

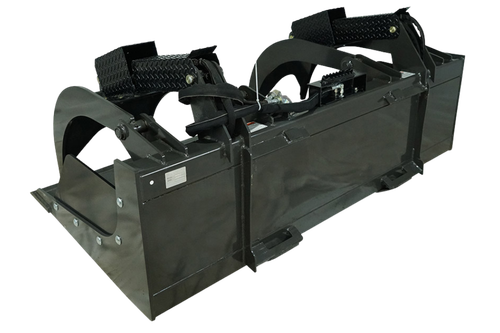

X-Treme Duty Grapple Bucket For Mini Skid Steers
Handle brush, debris, and material cleanup with the X-Treme Duty Mini Skid Grapple Bucket. Built for compact machines, it features a 32″ open tine height, 30″ depth, and a 2″ × 4-1/2″ hydraulic cylinder for reliable clamping power. Available in 36″–54″ widths, this bucket is reinforced with a 1/4″ bucket wrap and a 1/2″ × 6″ cutting edge for added strength.
Key Features:
- Widths: 36″, 42″, 44″, 48″, and 54″
- Optional weld-on teeth for digging
- Mounts: Dingo, Bobcat MT
| 36" X-Treme Mini Grapple Bucket | 42" X-Treme Mini Grapple Bucket | 44" X-Treme Mini Grapple Bucket | 48" X-Treme Mini Grapple Bucket | 54" X-Treme Mini Grapple Bucket | 60" X-Treme Mini Grapple Bucket | 66" X-Treme Mini Grapple Bucket | 72" X-Treme Mini Grapple Bucket | |
|---|---|---|---|---|---|---|---|---|
| SKU | MINIGB36 | MINIGB42 | MINIGB44 | MINIGB48 | MINIGB54 | MINIGB60 | MINIGB66 | MINIGB72 |
| Weight (Lbs) | Array | Array | Array | Array | Array | Array | Array | Array |
| Width (") | 36 | 42 | 44 | 48 | 54 | 60 | 66 | 72 |
| Open Tine Height (") | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Depth (") | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Cylinder Size | 2" x 4-1/2" | 2" x 4-1/2" | 2" x 4-1/2" | 2" x 4-1/2" | 2" x 4-1/2" | 2" x 4-1/2" | 2" x 4-1/2" | 2" x 4-1/2" |
| Weld-On Teeth | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Bolt-on Edge | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Bucket Wrap (") | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 3/16 | 3/16 | 3/16 |
| Cutting Edge (") | 1/2 x 6 | 1/2 x 6 | 1/2 x 6 | 1/2 x 6 | 1/2 x 6 | 1/2 x 4 | 1/2 x 4 | 1/2 x 4 |
| Available Mounts | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available | Dingo, Bobcat MT, Alternates available |
