50-70 HP

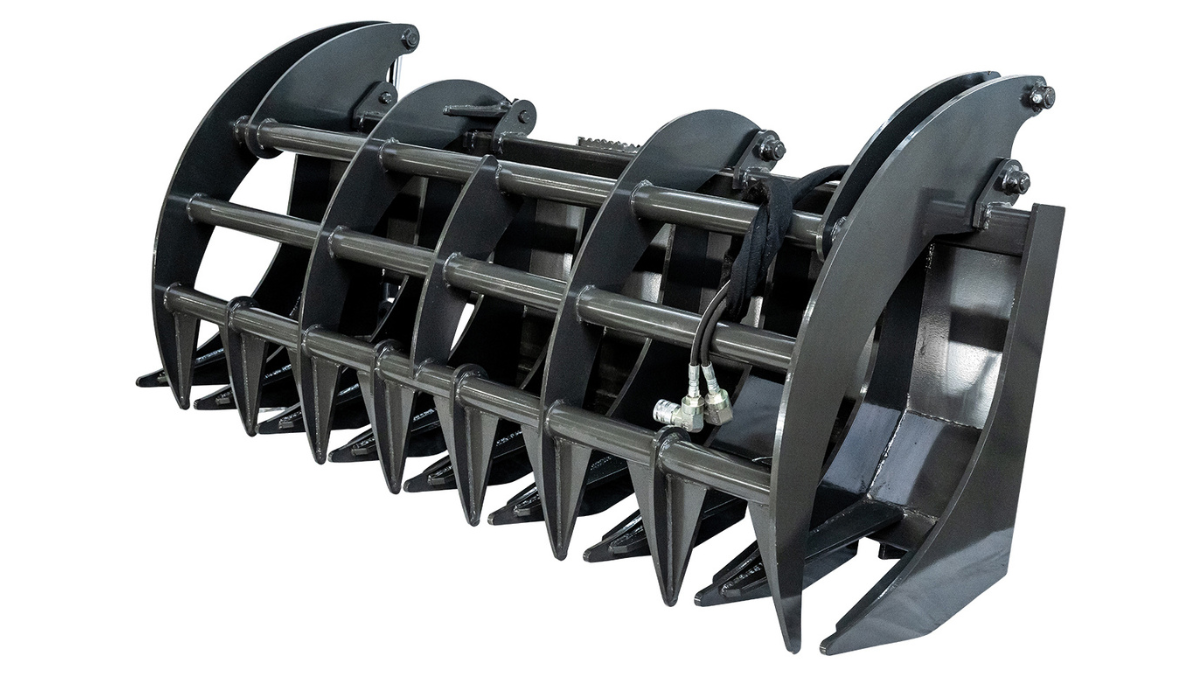

Heavy Duty Grapple Rake For Skid Steers
Clear, grab, and move heavy brush, roots, and debris with serious strength. The Skid Steer Heavy Duty Grapple Rake is built from ½″ thick steel and powered by dual 2″ × 10″ cylinders, giving it the grip and toughness needed for tough land clearing jobs.
Key Features:
- Available widths: 63″, 66″, 72″, 78″, 81″, 84″, and 96″
- Designed for skid steers 50–70 HP
- Ideal for land clearing, brush removal, and material handling
Swipe to compare models →
| 63" Heavy Duty Grapple Rake | 66" Heavy Duty Grapple Rake | 72" Heavy Duty Grapple Rake | 78" Heavy Duty Grapple Rake | 81" Heavy Duty Grapple Rake | 84" Heavy Duty Grapple Rake | 96" Heavy Duty Grapple Rake | |
|---|---|---|---|---|---|---|---|
| SKU | HDGR63 | HDGR66 | HDGR72 | HDGR78 | HDGR81 | HDGR84 | HDGR96 |
| Weight (Lbs.) | 777 | 814 | 874 | 888 | 950 | 955 | 1056 |
| Width (") | 63 | 66 | 72 | 78 | 81 | 84 | 96 |
| Open Tine Height (") | 51 | 51 | 51 | 51 | 51 | 51 | 51 |
| Length (") | 26 | 26 | 26 | 26 | 26 | 26 | 26 |
| Material Thickness (") | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Rated for | 50-70 HP Machines | 50-70 HP Machines | 50-70 HP Machines | 50-70 HP Machines | 50-70 HP Machines | 50-70 HP Machines | 50-70 HP Machines |
| Cylinder Size | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | v |
