Up to 65 HP

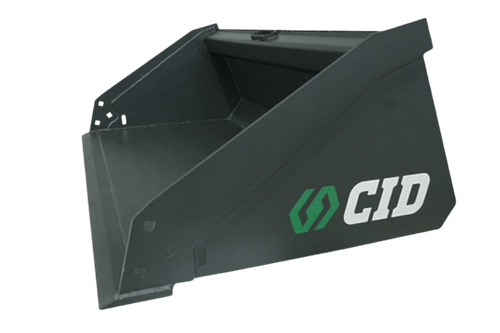

Skid Steer Long Bottom Bucket For Skid Steers
Move more material with a bucket built for versatility and strength. The Skid Steer Long Bottom Bucket offers a wide 96″ design with reinforced wear bars and optional teeth for added digging power. Its extended 48″–96″ length provides greater reach and loading efficiency, while the heavy-duty 3/4″ cutting edge and 3/16″ wrap deliver durability in demanding conditions.
Key Features:
- Rated for: up to 65 HP track / 70 HP wheel machines
- Options: Bolt-on edge, teeth, and side cutting teeth
| 48" Long Bottom Bucket | 54" Long Bottom Bucket | 60" Long Bottom Bucket | 63" Long Bottom Bucket | 66" Long Bottom Bucket | 72" Long Bottom Bucket | 74" Long Bottom Bucket | 78" Long Bottom Bucket | 81" Long Bottom Bucket | 84" Long Bottom Bucket | 90" Long Bottom Bucket | 96" Long Bottom Bucket | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | Standard: (LBB48) With Teeth: (LBB48T) | Standard: (LBB54) With Teeth: (LBB54T) | Standard: (LBB60) With Teeth: (LBB60T) | Standard: (LBB63) With Teeth: (LBB63T) | Standard: (LBB66) With Teeth: (LBB66T) | Standard: (LBB72) With Teeth: (LBB72T) | Standard: (LBB74) With Teeth: (LBB74T) | Standard: (LBB78) With Teeth: (LBB78T) | Standard: (LBB81) With Teeth: (LBB81T) | Standard: (LBB84) With Teeth: (LBB84T) | Standard: (LBB90) With Teeth: (LBB90T) | Standard: (LBB96) With Teeth: (LBB96T) |
| Weight (Lbs.) | Array | Array | Array | 414-? | 432-487 | 454-512 | 468-? | 498-? | 500-542 | 516-577 | 558-621 | 595-658 |
| Width (") | 48 | 54 | 60 | 63 | 66 | 72 | 74 | 78 | 81 | 84 | 90 | 96 |
| Height (") | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| Length (") | 35" | 35" | 35" | 35" | 35" | 35" | 35" | 35" | 35" | 35" | 35" | 35" |
| Rated for (HP) | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP | Track machines: up to 65 HP and Wheel machines: up to 70 HP |
| Cutting Edge | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" | 3/4" x 6" |
| Bucket Wrap (") | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 | 3/16 |
| Wear Bars & Side Edge (") | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| Optional Teeth Available | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Optional Side Cutting Teeth Available | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Optional Bolt on Edge Available | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Bucket Capacity (ft³) | 14.72 | 15.44 | 16.87 | 18.3 | 19.02 | 19.74 | 21.17 | 22.6 | ||||
| Bucket Capacity (yd³) | 0.55 | 0.57 | 0.62 | 0.68 | 0.7 | 0.73 | 0.78 | 0.84 |
