40–50 HP

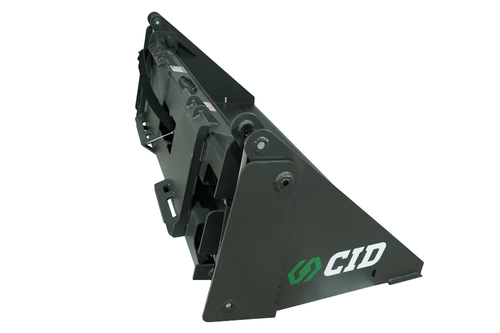

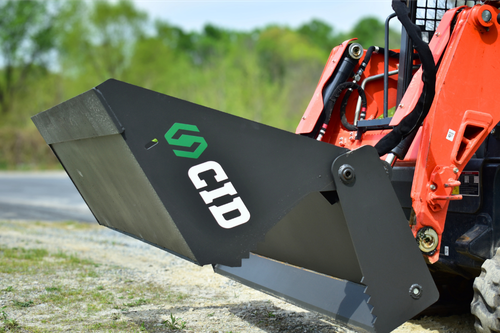

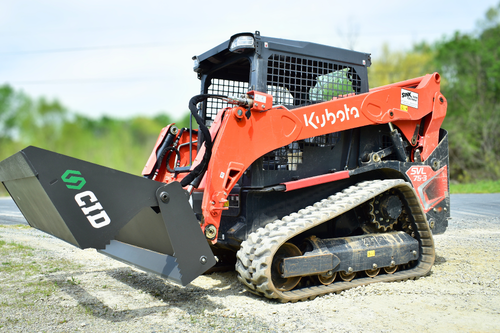

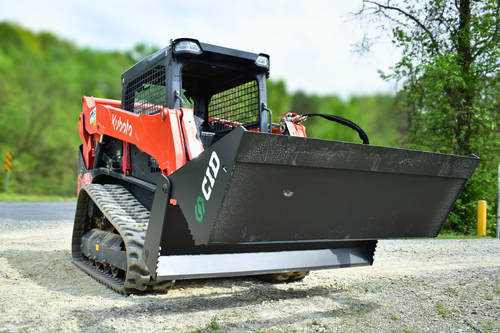

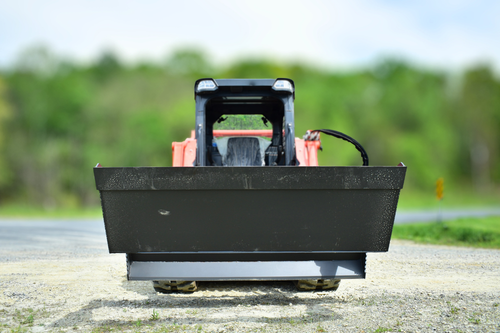

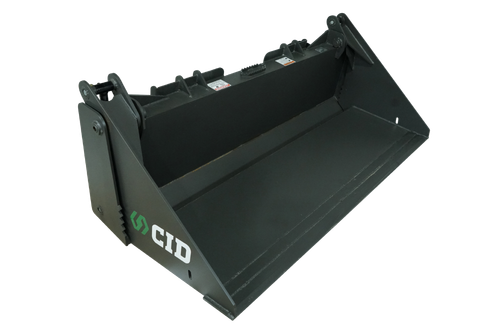

Standard Duty 4-in-1 Bucket For Skid Steers

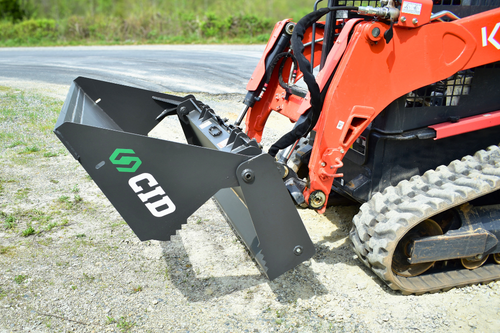

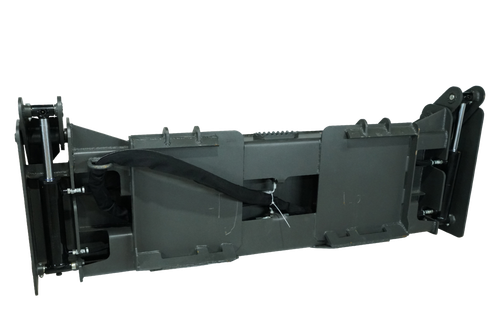

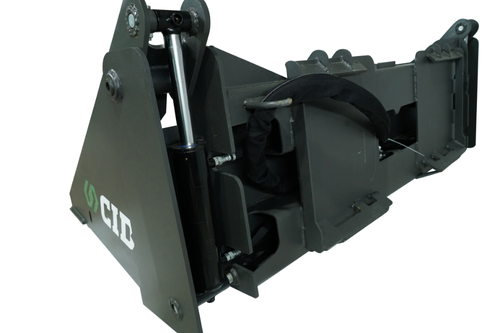

Dig, load, grade, and grapple with one versatile attachment designed for machines in the 40–50 HP range. The Skid Steer Standard Duty 4-in-1 Bucket uses dual 2.5″ x 8″ hydraulic cylinders to deliver strong clamping force while giving you the flexibility of four tools in one. A heavy-duty 1/2″ x 6″ cutting edge comes standard, with optional welded teeth for digging or a bolt-on edge for longer wear.
Key Features:
- Available widths: 54″, 60″, 63″, 66″, and 72″
- Rate for machines in the 40-50 HP range

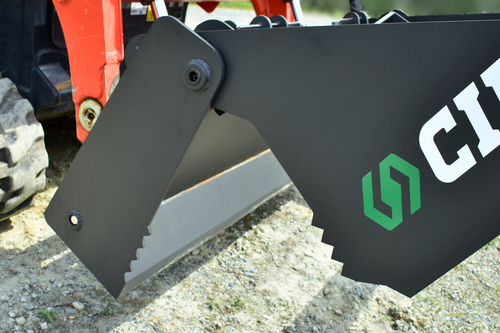

- Optional welded teeth for digging (not compatible with bolt-on edge)
- Optional bolt-on cutting edge for extended wear
Swipe to compare models →
| 54" Standard Duty 4 in 1 Bucket | 60" Standard Duty 4 in 1 Bucket | 63" Standard Duty 4 in 1 Bucket | 66" Standard Duty 4 in 1 Bucket | 72" Standard Duty 4 in 1 Bucket | |
|---|---|---|---|---|---|
| SKU | SD4N1-54 | SD4N1-60 | SD4N1-63 | SD4N1-66 | SD4N1-72 |
| Weight (Lbs.) | 540 | 600 | 630 | 640 | 650 |
| Width (") | 54" | 54" | 63" | 66" | 72 |
| Height (") | 28" | 28" | 28" | 28" | 28" |
| Bucket Capacity (ft.) | Array | ||||
| Bucket Capacity (yd.) | Array | ||||
| Depth (") | 30" Closed | 30" Closed | 30" Closed | 30" Closed | 30" Closed |
| Rated for (HP) | 40-50 HP | 40-50 HP | 40-50 HP | 40-50 HP | 40-50 HP |
| Cutting Edge | 1/2" x 6" | 1/2" x 6" | 1/2" x 6" | 1/2" x 6" | 1/2" x 6" |
| Cylinder Size | 2.5" x 8" | 2.5" x 8" | 2.5" x 8" | 2.5" x 8" | 2.5" x 8" |
| Welded Teeth | Optional | Optional | Optional | Optional | Optional |
| Bolt-On Front Cutting Edge | Optional (Not Configurable with Welded Teeth) | Optional (Not Configurable with Welded Teeth) | Optional (Not Configurable with Welded Teeth) | Optional (Not Configurable with Welded Teeth) | Optional (Not Configurable with Welded Teeth) |
| Bucket Capacity (ft³) | 12.17 | 12.79 | 13.42 | ||
| Bucket Capacity (yd³) | 0.45 | 0.47 | 0.5 |
