36-60 HP

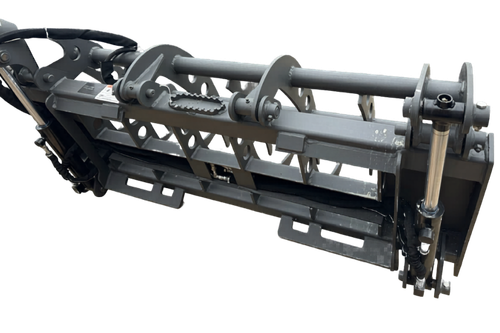

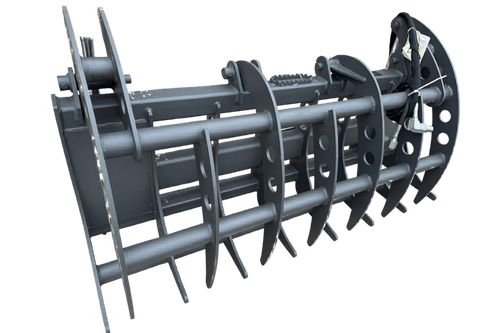

Standard Duty Grapple Rake For Skid Steers
Handle brush, roots, and debris with a durable grapple rake designed for mid-size machines. The Standard Duty Grapple Rake is built from 3/8″ AR400 steel and powered by dual 2″ × 10″ hydraulic cylinders, delivering dependable clamping strength and long-lasting performance.
Key Features:
- Available widths: 63″, 66″, and 72″
- Recommended for 35–60 HP machines
- Constructed from 3/8″ AR400 steel for added durability
Swipe to compare models →
| 63" Standard Duty Grapple Rake | 66" Standard Duty Grapple Rake | 72" Standard Duty Grapple Rake | |
|---|---|---|---|
| SKU | ARSGR63 | ARSGR66 | ARSGR72 |
| Weight (Lbs.) | 425 | 455 | 550 |
| Width (") | 63 | 66 | 72 |
| Open Tine Height (") | 42 | 42 | 42 |
| Length (") | 17 | 17 | 17 |
| Rated for | Recommended for machines 35-60 HP | Recommended for machines 35-60 HP | Recommended for machines 35-60 HP |
| Material Thickness | 3/8" AR400 Steel | 3/8" AR400 Steel | 3/8" AR400 Steel |
| Cylinder Size | 2" x 10" | 2" x 10" | 2" x 10" |
