35–45 HP

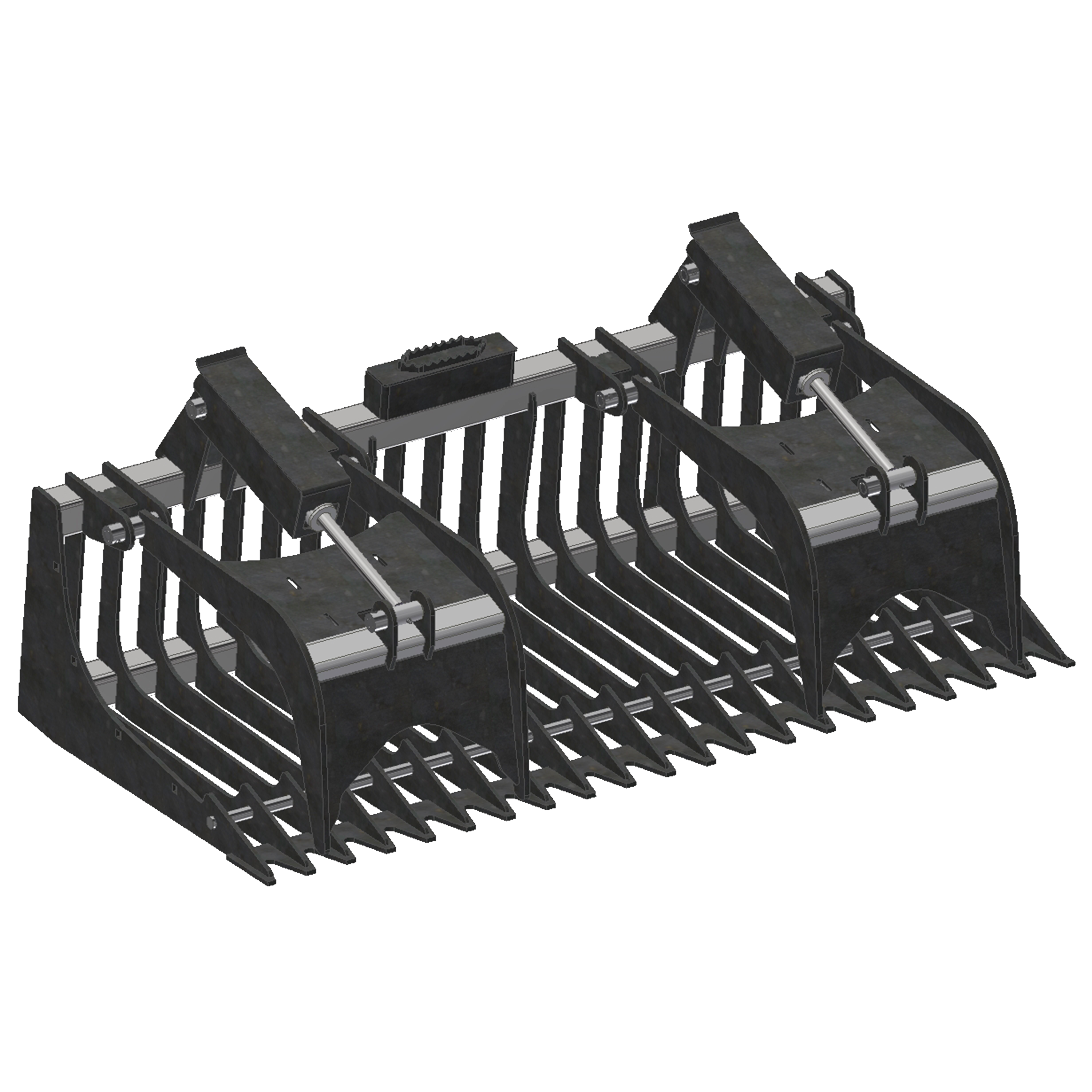

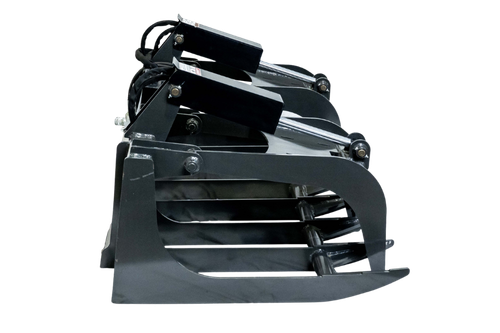

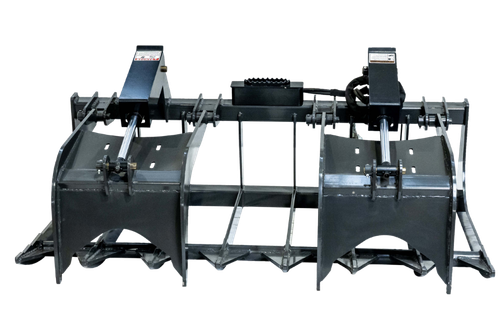

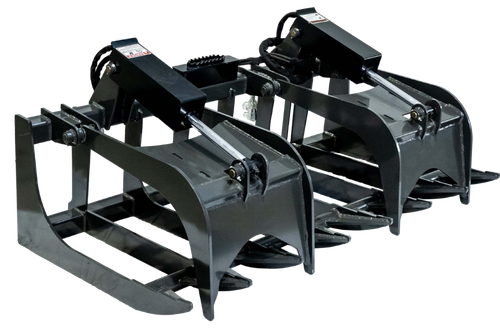

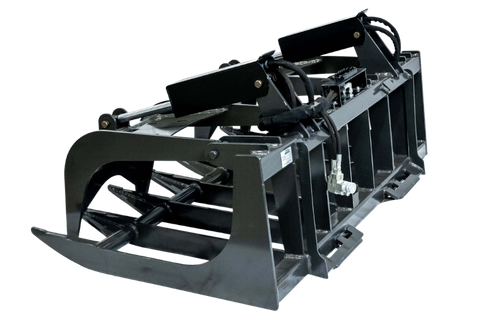

Standard Duty Root Grapple For Skid Steers
The Skid Steer Standard Duty Root Grapple is built for compact and mid-sized skid steers handling cleanup, brush, and light land clearing work. Designed for machines in the 35–45 HP range, this grapple gives you strong clamping power without unnecessary weight, making it ideal for everyday property maintenance and lighter-duty jobs.
Key Features:
- Available in 63”–84” widths
- Designed for 35–45 HP skid steers
- Optional spacer tines and cylinder rod covers available
Swipe to compare models →
| Standard Duty Root Grapple 63" | Standard Duty Root Grapple 66" | Standard Duty Root Grapple 72" | Standard Duty Root Grapple 78" | Standard Duty Root Grapple 81" | Standard Duty Root Grapple 84" | |
|---|---|---|---|---|---|---|
| SKU | SRG63 | SRG66 | SRG72 | SRG78 | SRG81 | SRG84 |
| Weight (Lbs.) | 553 | 559 | 583 | 631 | 655 | 675 |
| Width (") | 63 | 66 | 72 | 78 | 81 | 84 |
| Open Tine Height (") | 35 | 35 | 35 | 35 | 35 | 35 |
| Depth (") | 38 | 38 | 38 | 38 | 38 | 38 |
| Rated for | Recommended for machines 35-45 HP | Recommended for machines 35-45 HP | Recommended for machines 35-45 HP | Recommended for machines 35-45 HP | Recommended for machines 35-45 HP | Recommended for machines 35-45 HP |
| Tine Spacing (") | 8 | 8 | 8 | 8 | 8 | 8 |
| Cylinder Size | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" |
| Tine Thickness (") | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| Frame | 3" x 3" Tubing | 3" x 3" Tubing | 3" x 3" Tubing | 3" x 3" Tubing | 3" x 3" Tubing | 3" x 3" Tubing |
| Cylinder Rod Cover | Optional | Optional | Optional | Optional | Optional | Optional |
| Spacer Tines | Optional | Optional | Optional | Optional | Optional | Optional |
