65+ HP

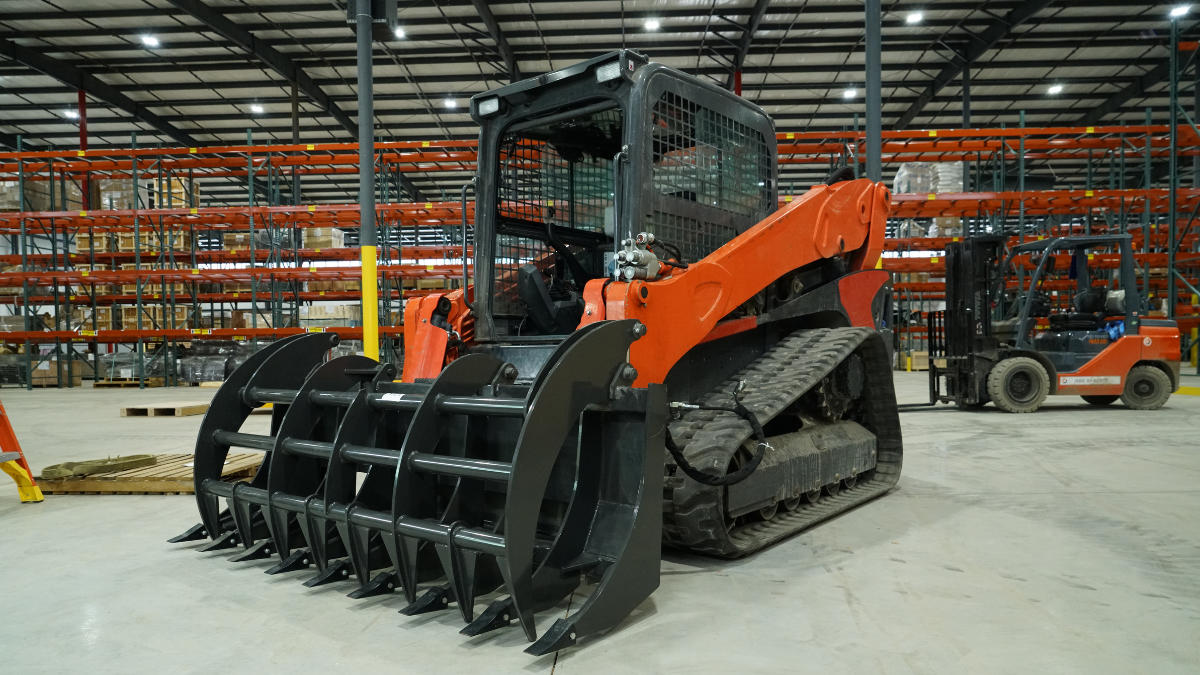

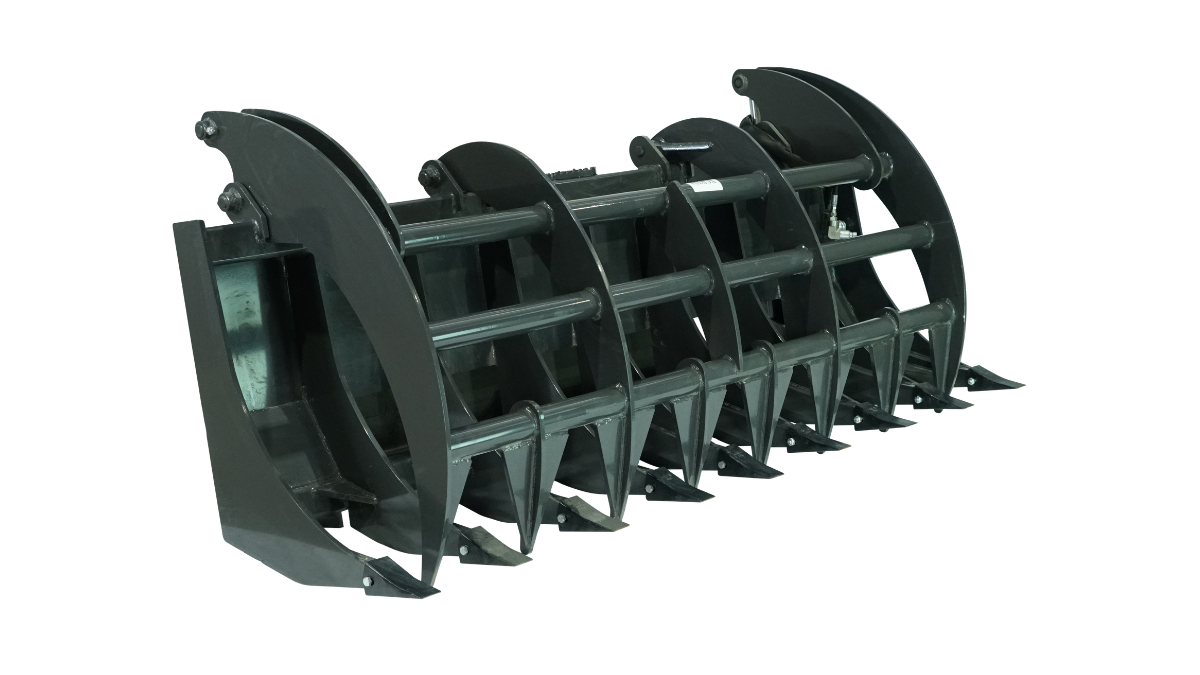

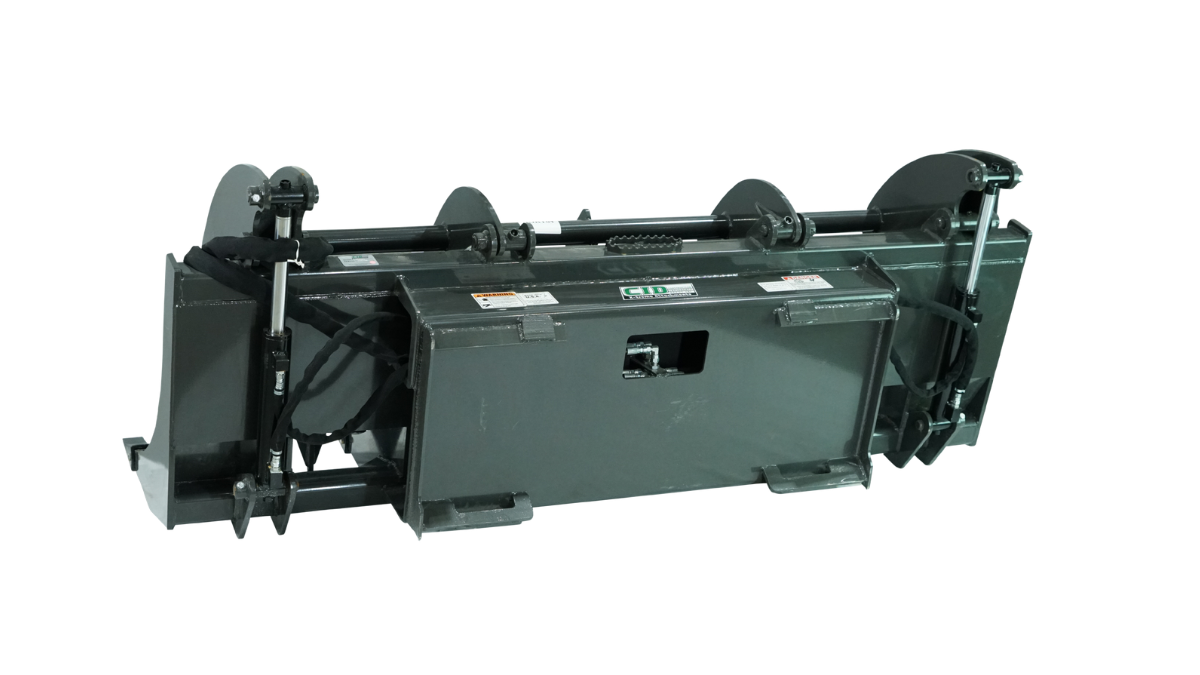

X-Treme Duty Grapple Rake For Skid Steers
Built for the toughest clearing jobs, the Skid Steer X-Treme Duty Grapple Rake delivers strength, grip, and precision for high-horsepower machines. Constructed from ½″ top-quality steel with replaceable bolt-on teeth included, it’s designed to tear through roots, logs, and debris with ease.
Key Features:
- Available widths: 63″, 66″, 72″, 78″, 81″, 84″, and 96″
- Built for 65+ HP skid steers
- Replaceable bolt-on teeth included for extended wear life
Swipe to compare models →
| 63" X-Treme Duty Grapple Rake | 66" X-Treme Duty Grapple Rake | 72" X-Treme Duty Grapple Rake | 78" X-Treme Duty Grapple Rake | 81" X-Treme Duty Grapple Rake | 84" X-Treme Duty Grapple Rake | 96" X-Treme Duty Grapple Rake | |
|---|---|---|---|---|---|---|---|
| SKU | XGR63T | XGR66T | XGR72T | XGR78T | XGR81T | XGR84T | XGR96T |
| Weight (Lbs.) | 824 | 863 | 942 | 954 | 1002 | 1031 | 1099 |
| Width (") | 63 | 66 | 72 | 78 | 81 | 84 | 96 |
| Open Tine Height (") | 51 | 51 | 51 | 51 | 51 | 51 | 51 |
| Length (") | 26 | 26 | 26 | 26 | 26 | 26 | 26 |
| Rated for | Recommended for 65 HP and above machines | Recommended for 65 HP and above machines | Recommended for 65 HP and above machines | Recommended for 65 HP and above machines | Recommended for 65 HP and above machines | Recommended for 65 HP and above machines | Recommended for 65 HP and above machines |
| Cylinder Size | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" |
| Bolt On Teeth | Replaceable | Replaceable | Replaceable | Replaceable | Replaceable | Replaceable | Replaceable |
| Teeth Included | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Material Thickness | 1/2" | 1/2" top quality steel | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Tine Thickness (") | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
