X-Treme Duty

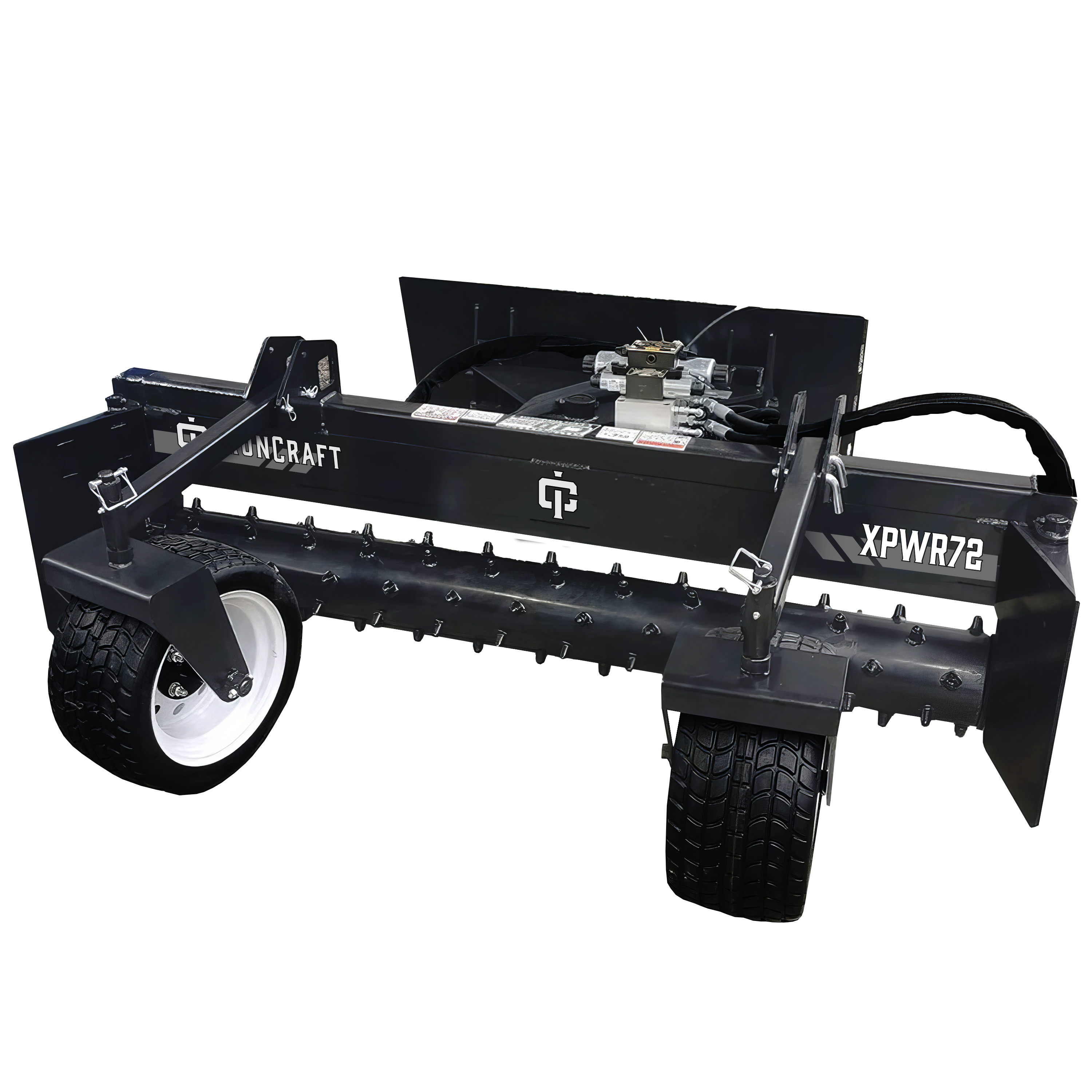

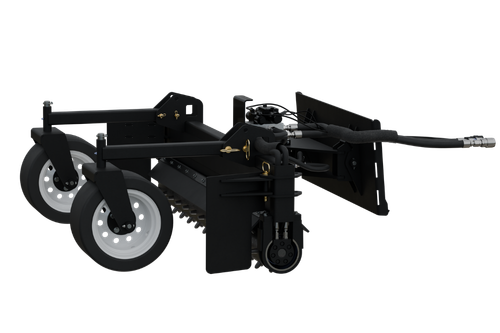

Hydraulic Power Rake For Skid Steers

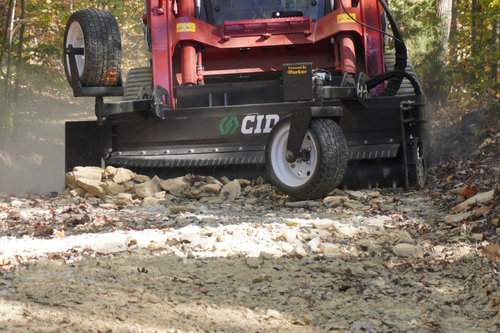

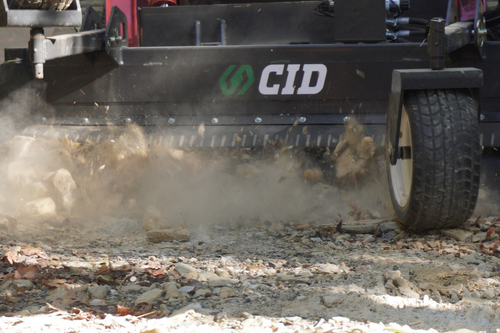

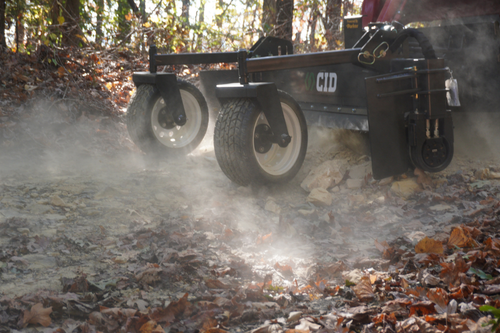

The X-Treme Duty Hydraulic Power Rake is built for serious grading, seedbed prep, and cleanup work. Designed with a bi-directional drum and carbide teeth, it pulverizes clumps, levels ground, and clears debris fast. The inset direct-drive motor delivers smooth, consistent torque while keeping the unit compact for tight areas.
Available in 72″ and 90″ working widths, this power rake features removable side plates for windrowing, front and rear debris curtains for protection, and solid foam-filled tires for dependable performance on rough terrain. Compatible with multiple wiring harness options — Universal, 7-pin, 8-pin, or 14-pin — it’s ready to plug in and work on a wide range of machines.
Key Features:
- Available in 72″ and 90″ widths
- Inset direct drive motor for compact power and reduced maintenance
- Bi-directional drum with carbide teeth for aggressive raking and soil conditioning
- Front and rear debris curtains protect the operator and the machine
- Removable side plates for controlled material flow
- Solid foam-filled tires for durability and easy maneuvering
- Compatible with Universal, 7-pin, 8-pin, or 14-pin wiring harnesses
| X-Treme Duty 72" Hydraulic Power Rake | X-Treme Duty 90" Hydraulic Power Rake | |
|---|---|---|
| SKU | XPWR72 | XPWR90 |
| Weight (Lbs.) | 1041 | 1142 |
| Working Width (") | 72 | 90 |
| Overall Width (") | 79 | |
| Height (") | 27 | 27 |
| Drum Height (") | 10 | 10 |
| Length (") | 62 | 62 |
| Flow Range (GPM) | 15-25 | 15-25 |
| Motor | Inset Direct Drive Motor | Inset Direct Drive Motor |
| Guard | Front & Back Debris Curtain | Front & Back Debris Curtain |
| Teeth Included | Carbide teeth | Carbide teeth |
| Drum | Bi-directional | Bi-directional |
| Outside Drum Diameter (") | 7 1/2 | 7 1/2 |
| Side Plates | Removable | Removable |
| Wheel Type | Solid Foam Filled Tires | Solid Foam Filled Tires |
| Wiring Harness Options | Universal, 7pin, 8pin or 14pin | Universal, 7pin, 8pin or 14pin |
| Overall Width | 98 |
