17-30 GPM

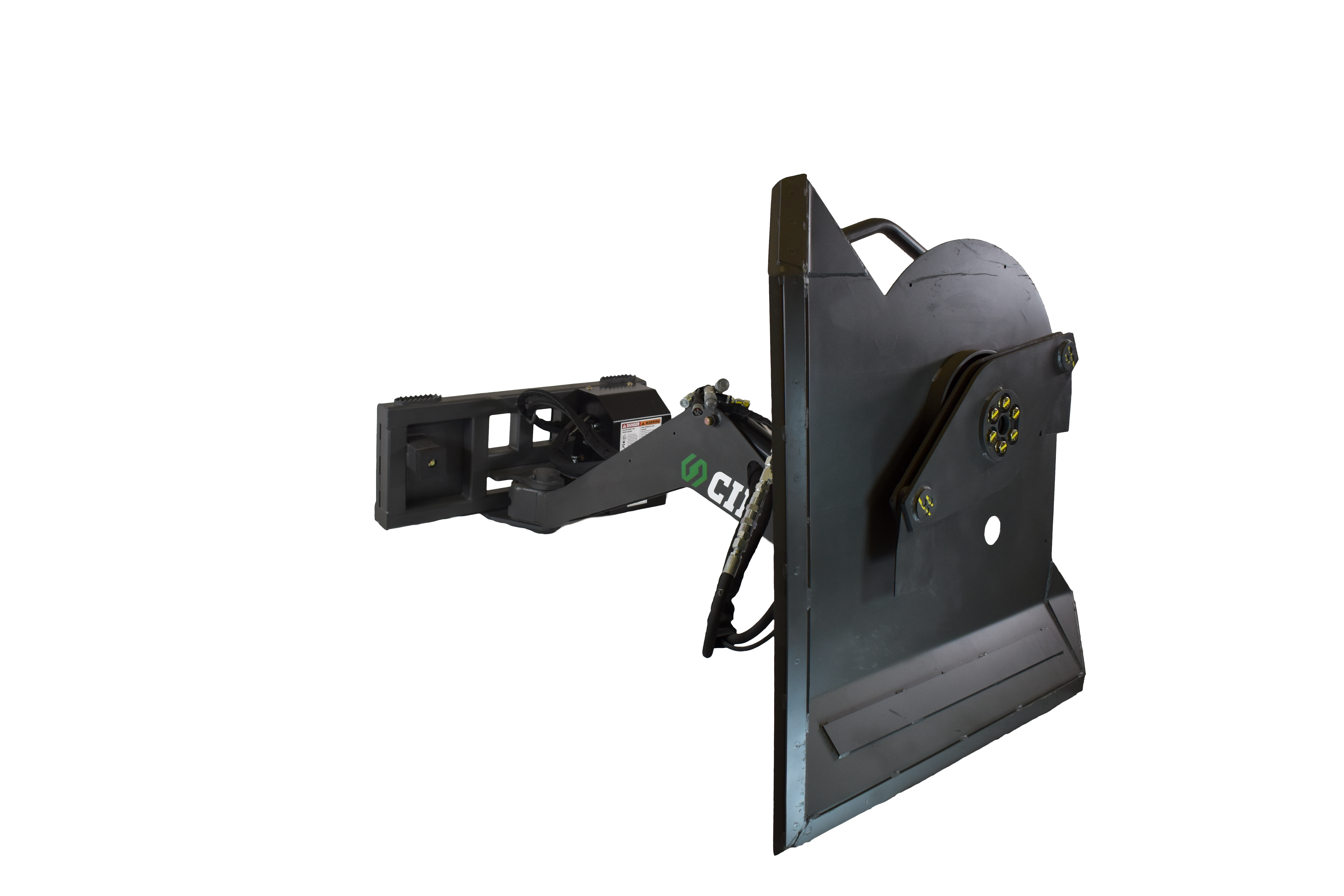

Piston Motor Swing Boom Brush Cutter For Skid Steers
Take on heavy brush, fence lines, and steep embankments with a boom cutter built for severe-duty applications. The Skid Steer Severe Duty Skid Steer Boom Cutter is powered by a direct drive piston motor and operates at up to 4000 PSI, delivering the torque needed to cut through material up to 4″ thick. It’s 44″ cutting width with two 5/8″ AR400 blades provides durability and cutting power, while the boom and swing cylinders give you up to 16′ vertical reach and 8′ horizontal reach.
Key Features:
- Cutting width: 48″
- Cutting capacity: up to 4″ material
- Flow range: 17–30 GPM
- Wiring harness options: Universal, 7-pin, 8-pin, or 14-pin”
| Piston Motor Swing Boom Brush Cutter | |
|---|---|
| SKU | SBCNS |
| Weight (Lbs.) | 1208 |
| Cutting Width (") | 48 |
| Cutting Capacity (") | 4" |
| Blade Count | 2 |
| Flow Range (GPM) | 17 - 30 GPM |
| Max Pressure (PSI) | 4000 |
| Boom Cylinder Size | 3" x 16" |
| Swing Cylinder Size | 3" x 6" |
| Motor | Direct Drive Piston Motor |
| Case Drain | Required |
| Wiring Harness Options | Universal, 7 pin, 8 pin, or 14 pin |
| Blade Material | 5/8" AR400 |
| Horizontal Reach (") | 96 |
| Vertical Reach (") | 192 |
