14-26 GPM
Standard Duty Swing Boom Brush Cutter For Skid Steers

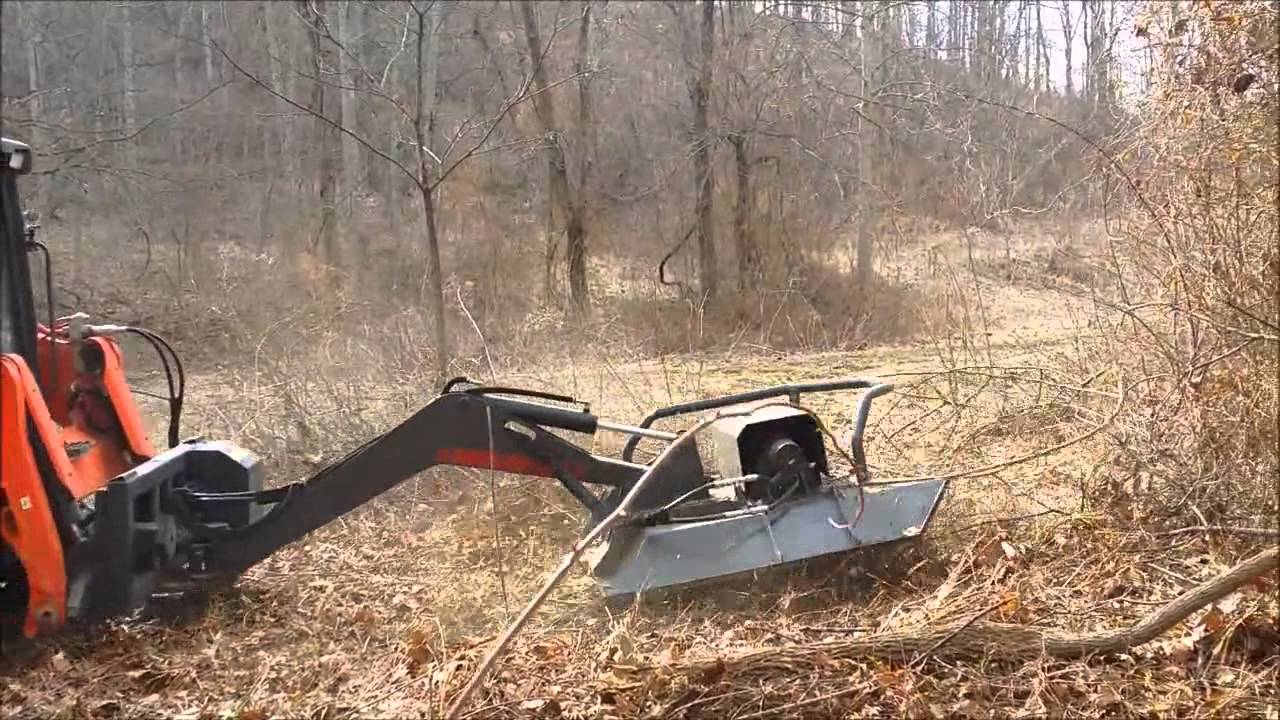

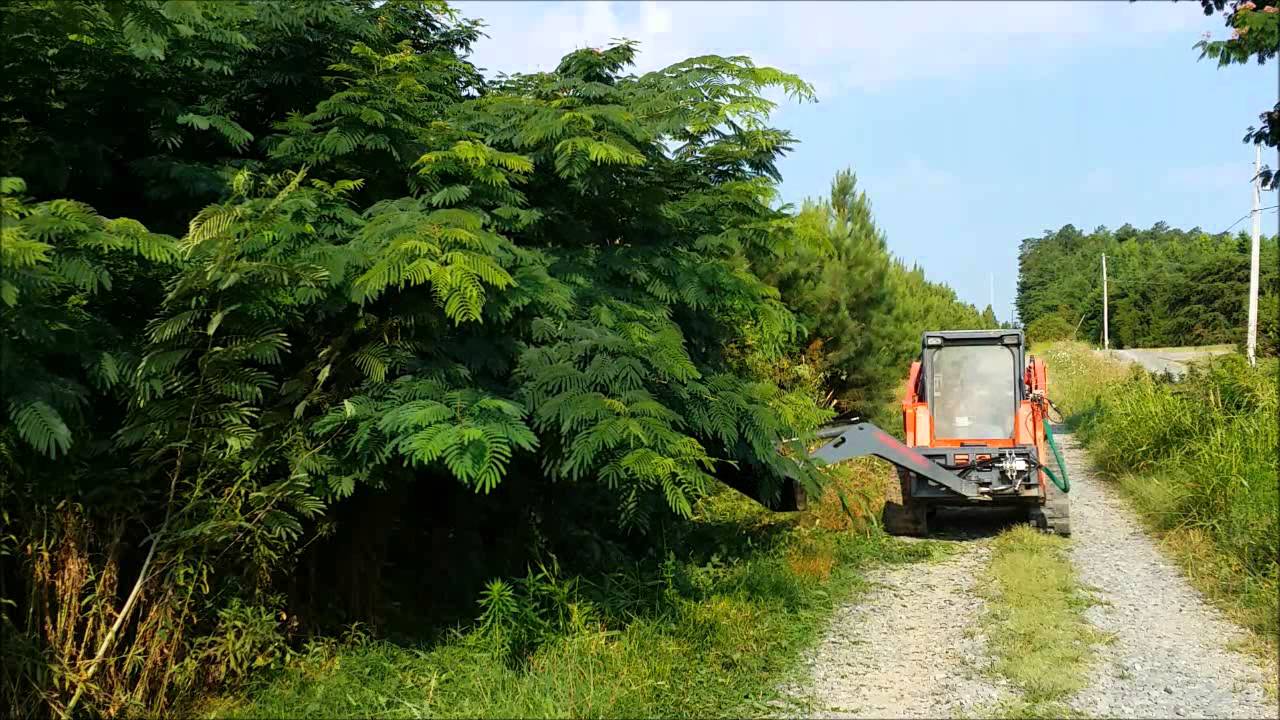

Clear fence lines, ditches, embankments, and hard-to-reach areas with a boom-mounted cutter that extends your reach. The Skid Steer Swing Boom Cutter features a high torque Parker motor and dual hydraulic cylinders for swing and boom control, giving you the ability to cut vertically up to 16′ high or reach 8′ out horizontally. Equipped with two 5/8″ AR400 blades, it cuts material up to 3″ thick while maintaining smooth performance without requiring a case drain. This boom cutter makes quick work of brush and overgrowth in areas standard cutters can’t reach.
Key Features:
- Cutting width: 44″
- Cutting capacity: up to 3″ material
- Flow range options: 14–20 GPM or 16–26 GPM
- Wiring harness options: Universal, 7-pin, 8-pin, or 14-pin”
| Standard Duty Swing Boom Brush Cutter | |
|---|---|
| SKU | SBC |
| Weight (Lbs.) | 1206 |
| Cutting Width (") | 48 |
| Cutting Capacity (") | 3" |
| Blade Count | 2 |
| Flow Range (GPM) | 14 - 20 GPM or 16-26 GPM |
| Max Pressure (PSI) | 3000 |
| Boom Cylinder Size | 3" x 16" |
| Swing Cylinder Size | 3" x 6" |
| Motor | High Torque Parker Motor |
| Case Drain | Not Required |
| Wiring Harness Options | Universal, 7 pin, 8 pin, or 14 pin |
| Blade Material | 5/8" AR400 |
| Horizontal Reach (") | 96 |
| Vertical Reach (") | 192 |
