65+ HP

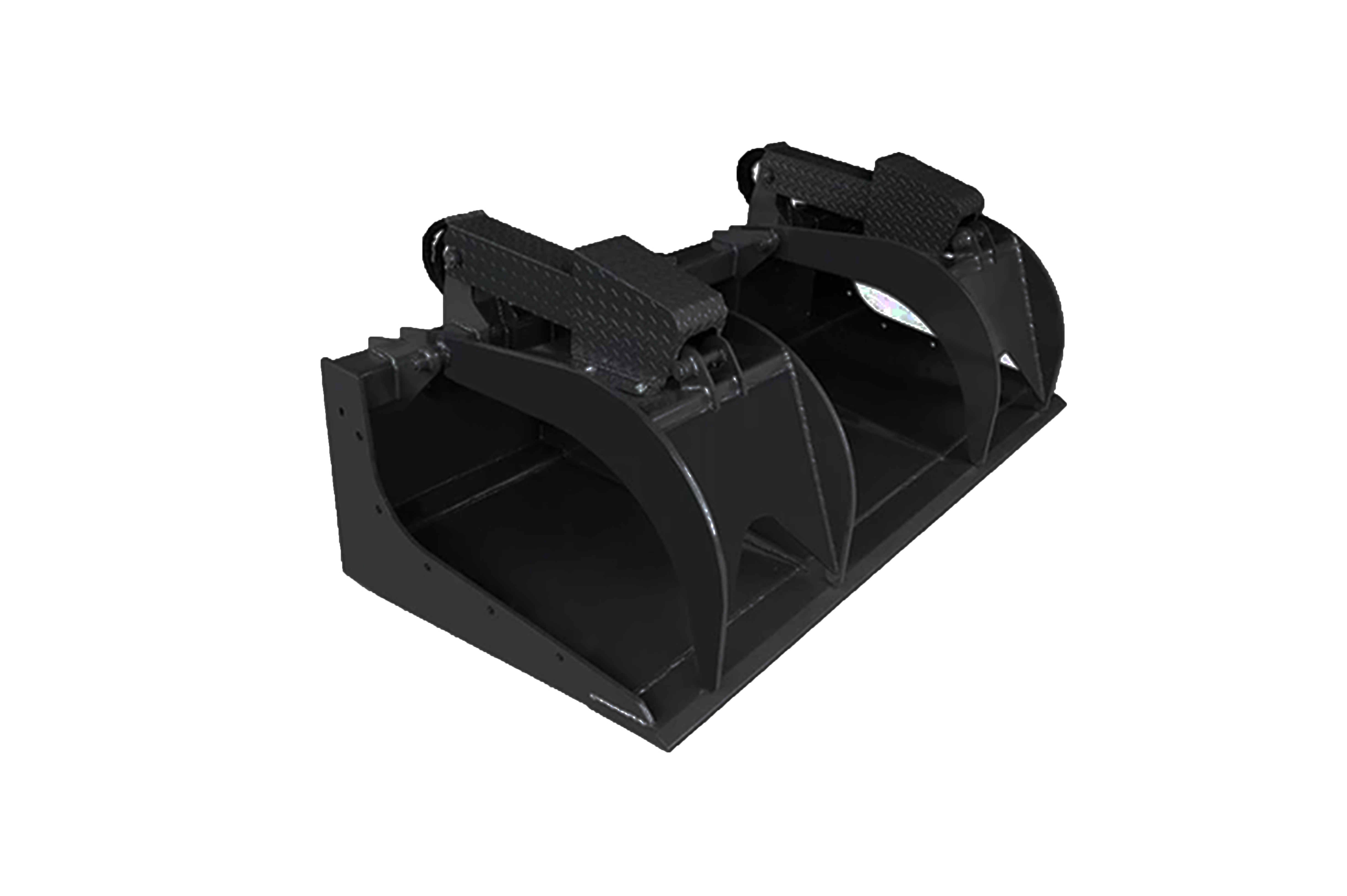

X-Treme Duty Grapple Bucket For Skid Steers
The Skid Steer X-Treme Duty Grapple Bucket is engineered for operators who demand serious strength and performance from their attachments. Designed for skid steers 65 HP and above, this bucket is built to move logs, brush, demolition debris, and heavy materials without backing down. With its reinforced frame, full-length cylinder rod protectors, and open-tine design, this grapple bucket is built for heavy-duty land clearing, construction, and demolition work.
Key Features:
- Available in widths from 66” to 96”
- Rated for 65+ HP skid steers and track loaders
- Optional weld-on teeth and bolt-on edge
| X-Treme Grapple Bucket 66" | X-Treme Grapple Bucket 72" | X-Treme Grapple Bucket 78" | X-Treme Grapple Bucket 81 | X-Treme Grapple Bucket 84" | X-Treme Grapple Bucket 96" | |
|---|---|---|---|---|---|---|
| SKU | XGB66 | XGB72 | XGB78 | XGB81 | XGB84 | XGB96 |
| Weight (Lbs.) | 1034 | 1071 | 1098 | 1126 | 1154 | 1266 |
| Width (") | 66 | 72 | 78 | 81 | 84 | 96 |
| Open Tine Height (") | 41 | 41 | 41 | 41 | 41 | 41 |
| Length (") | 42 | 42 | 42 | 42 | 42 | 42 |
| Rated for (HP) | 65+ HP | 65+ HP | 65+ HP | 65+ HP | 65+ HP | 65+ HP |
| Cylinder Size | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" | 2" x 10" |
| Top Tine Thickness (") | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 |
| Bolt On Sides | Included | Included | Included | Included | Included | Included |
| Cutting Edge (") | 1 x 8 | 1 x 8 | 1 x 8 | 1 x 8 | 1 x 8 | 1 x 8 |
| Bolt On Edge | Optional | Optional | Optional | Optional | Optional | Optional |
| Weld-On Teeth | Optional | Optional | Optional | Optional | Optional | Optional |
| Cylinder Rod Protector | Included | Included | Included | Included | Included | Included |
