The Complete Guide to Skid Steer Buckets: Dimensions, Capacities, and Application Matching

Written By: Hailey Miller

Welcome to the definitive commercial fleet playbook for CID Attachments full-size Skid Steer and Compact Track Loader (CTL) buckets. When processing public works projects, high-volume agricultural material handlings, or grueling infrastructural excavations, matching exact structural bucket classifications to asset power outputs determines both your operational cycle speeds and down-the-line structural lifetime.

This master layout profiles every single bucket configuration within our commercial line, maps out core volumetric and material thickness specifications, and details exactly when to employ each tier.

1. Skid Steer 4-in-1 Buckets

The multi-purpose 4-in-1 lines provide extreme versatility on dynamic job sites, functioning smoothly as a traditional dirt bucket, grading scraper, mechanical grapple, or bottom-dump clearing hopper.

Sizing, Specifications & Capacities

• Standard Duty 4-in-1 Bucket:

  • Width Profiles: Available in 54″, 60″, 63″, 66″, and 72″.

  • Structural Composition: 1/2″ x 6″ carbon edge, dual 2.5″ x 8″ industrial hydraulic cylinders.

  • Volumetric Holding Example: 60″ holds 12.17 ft3 (0.45 yd3); 66″ holds 12.79 ft3 (0.47 yd3).

  • Power Optimization: Engineered for machines rated strictly between 40–50 HP.

• Heavy Duty 4-in-1 Bucket:

  • Width Profiles: Available in 60″, 63″, 66″, 72″, 78″, and 84″.

  • Structural Composition: Upgraded heavy-duty 3/4″ front cutting edge with amplified frame support bars.

  • Power Optimization: Engineered for mid-frame skid steers rated between 50–65 HP.

• X-Treme Duty 4-in-1 Bucket:

  • Width Profiles: Available in 66″ up to 84″ widths.

  • Structural Composition: Built with a thicker 1/4″ wrapper skin, thick wear bars, and upgraded dual cylinders to resist twist under elevated breakout force.

  • Power Optimization: Tailored for heavy-duty track machines and wheeled units from 65–75 HP.

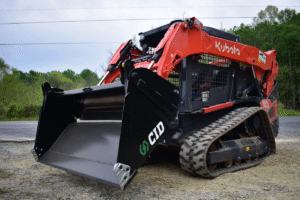

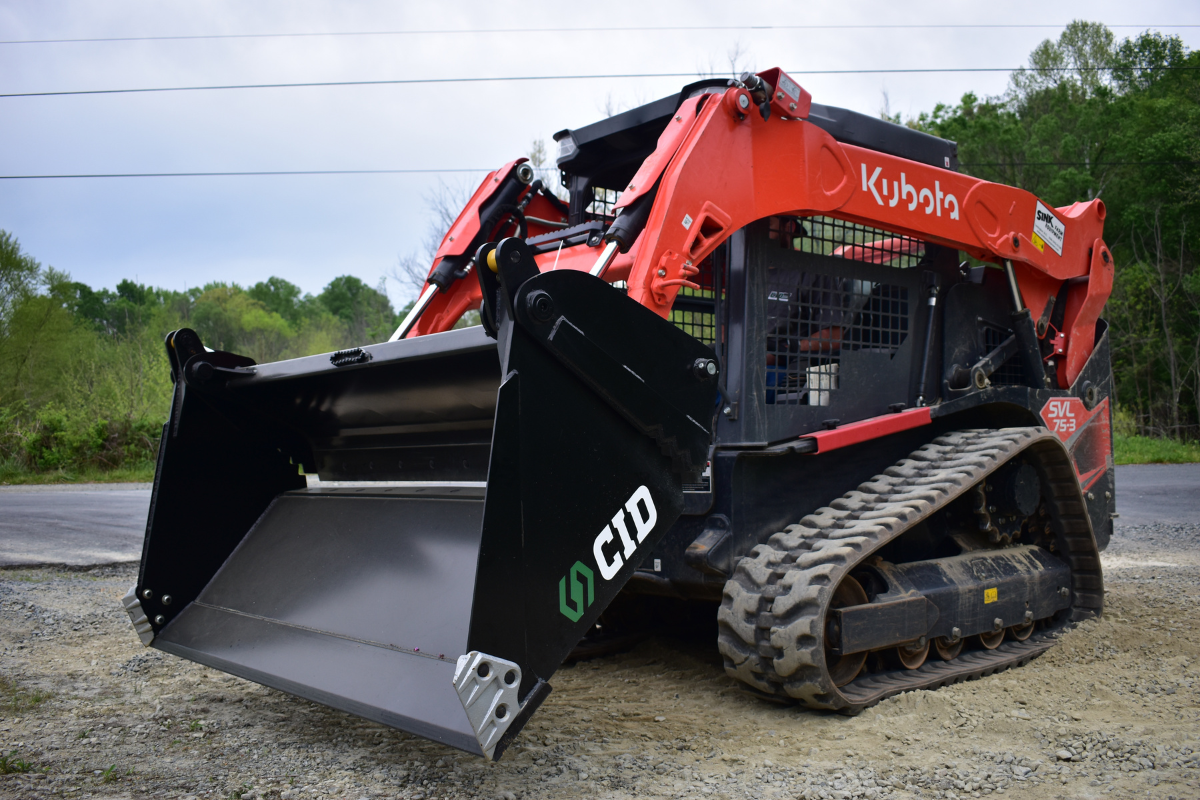

• Severe Duty 4-in-1 Bucket:

  • Width Profiles: Heavy-class footprint available in 72″, 78″, 81″, and 84″ spans.

  • Structural Composition: Substantial 1″ x 8″ front cutting edge, a reinforced 4″ x 1/2″ rear edge, a 1/4″ structural wrapper, and heavy 2 3/4″ x 8″ (or 3″) industrial cylinders.

  • Power Optimization: Built exclusively for high-power tier-assets running 70+ HP up to full industrial limits.

Operational Environment

• When to Use: Use when a single operator must rapidly switch between scraping a base course, back-dragging topsoil flat, claming down on heavy demolition wreckage, and dumping cleanly into elevated trucks.

2. Skid Steer Specialty Buckets

Specialty buckets are performance-designed geometries engineered for explicit trade-specific workflows like masonry pouring, material elevation, or deep land clearing.

Sizing, Specifications & Capacities

• Skid Steer Concrete Bucket:

  • Volumetric Capacities: Standardized in solid 1/2 Yard (13.5 ft3) and 3/4 Yard (20.25 ft3) volume limits.

  • Core Engineering: Outfitted with an explicit dispensing snout and optional hydraulic gate chutes for remote pinpoint material pouring.

  • When to Use: Pouring footings, columns, and remote site curbs where full-sized concrete transit mix trucks cannot physically maneuver.

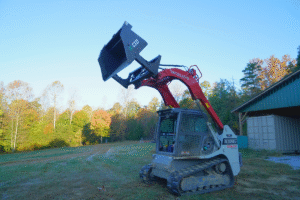

• Skid Steer High Dump Bucket / X-Treme High Dump Bucket:

  • Width Profiles: Available across 60″, 72″, 78″, 84″, and 96″ tracks.

  • Structural Composition: 3/16″ bucket wrapper, aggressive 3/4″ x 6″ cutting edge, side-mounted hydraulic cylinders to keep material flow uninhibited.

  • Volumetric Holding Example: 72″ holds 26.63 ft3 (0.99 yd3); 84″ holds 31.75 ft3 (1.18 yd3); 96″ reaches up to 36.88 ft3 (1.37 yd3).

  • Power Optimization: Optimally powered by host units up to 65 HP.

  • When to Use: Adds approximately 3 feet of extra vertical dumping reach. Essential for dumping agricultural materials, feed, compost, or facility trash directly over high-sided trucks and tall industrial container bins.

3. Skid Steer Standard Buckets (Dirt/Grading)

Standard and low-profile material handler buckets prioritize cutting-edge visibility and maximum floor planing length.

Sizing, Specifications & Capacities

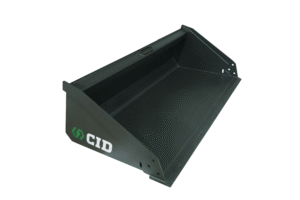

• Skid Steer Long Bottom Bucket:

  • Width Profiles: Production options run through 54″, 60″, 63″, 66″, 78″, 84″, and 90″ frames.

  • Structural Composition: 3/16″ wrapper skin, 3/8″ thick bottom wear bars and side edges, and a standard high-carbon 3/4″ x 6″ leading edge.

  • Power Optimization: Built for track machines under 65 HP and wheeled assets under 70 HP.

  • When to Use: Features an extended floor footprint to optimize volumetric loading capacity while giving operators a direct line of sight to the cutting edge.


• Skid Steer X-Treme Long Bottom Bucket:

  • Structural Composition: Upgraded to an aggressive X-treme Duty Package. Reconfigured with a thick 1/4″ structural wrap, heavy 1″ x 8″ leading cutting edge, and robust 1/2″ thick side edges and bottom wear bars.

  • Power Optimization: Rated to handle intense breakout pressures from high-output assets up to 110 HP.

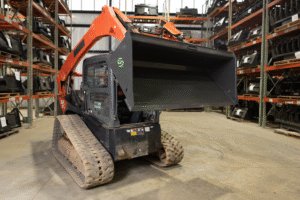

• Skid Steer Low Profile Bucket:

  • When to Use: Features a slightly shorter floor layout than the Long Bottom but retains a compact back wall to provide clear field visibility during tight structural grading and foundation dressing.

4. Skid Steer Snow & Bulk Litter Buckets

Snow and Litter lines are engineered for high-volume collection of low-density materials. Traditional dirt buckets lack the height and depth required to make light bulk material movement efficient.

Snow & Litter Family Dimensions Reference:
┌───────────────────────────────┬─────────────┬────────────┐
│ Bucket Style                  │ Back Height │ Base Depth │
├───────────────────────────────┼─────────────┼────────────┤
│ Heavy Duty Snow n Litter      │    27"      │    35"     │
│ Heavy Duty High Capacity      │    31"      │    40"     │
└───────────────────────────────┴─────────────┴────────────┘

Sizing, Specifications & Capacities

• Heavy Duty Snow n Litter Bucket:

  • Width Profiles: Spans from 48″ up to 108″.

  • Specs: 27″ high back, 35″ deep floor, 3/4″ x 6″ edge, 3/16″ wrap, and 3/8″ wear bars.

• X-Treme Duty Snow n Litter Bucket:

  • Width Profiles: Spans 60″ to 108″.

  • Specs: Upgraded to a 1″ x 8″ edge, 1/4″ wrap, and 1/2″ wear bars for harsh pavement scraping.

• Skid Steer Turkey Litter Bucket / X-Treme Turkey Litter Bucket:

  • When to Use: Features highly targeted, extra-tall back sheets designed specifically for cleanout cycles within poultry facilities, agricultural barns, and recycling collection stations.

• Heavy Duty High Capacity Snow N Litter Bucket:

  • Width Profiles: Available from 60″ to 108″.

  • Specs: Expanded to a 31″ tall back and 40″ deep floor footprint. Built with a 3/4″ x 6″ cutting edge, 3/16″ wrapper, and 3/8″ wear bars.

  • Volumetric Holding Example: 78″ width holds massive heaped loads (SKU: HCSB78, weight 646 lbs).

• X-Treme High Capacity Snow N Litter Bucket:

  • Width Profiles: 60″ to 108″ lines.

  • Specs: Amplified variant using a 1″ x 8″ cutting edge, 1/4″ structural wrapper skin, and 1/2″ bottom wear bars to resist abrasive concrete floor scraping.

5. Track Loader & Stump Buckets

Sizing, Specifications & Capacities

• X-Treme Track Loader Bucket / Industrial Track Loader Bucket:

  • Core Engineering: Engineered specifically to match the uncompromising ground speeds and severe torsional stress profiles generated by massive 75–110+ HP Compact Track Loaders (CTL). Thickened structural side cutters, deep internal plating gussets, and high-tensile mounting plates ensure these buckets resist heel bending when operating over rocky sub-base courses.

• Heavy Duty Stump Bucket / X-Treme Duty Stump Bucket:

  • Core Engineering: A highly focused, narrow, tapered snout assembly equipped with aggressive front teeth.

  • When to Use: Concentrates the entire machine’s breakout hydraulic force into a pinpoint area. Engineered specifically to pry out deep-set stumps, break through tangled root systems, and dig utility trenches in rocky or heavily compacted soils.

6. Skid Steer Rock Buckets

Rock buckets are specialized sorting attachments designed to screen loose material, allowing finer aggregate to pass through while retaining larger debris.

Sizing, Specifications & Capacities

• Standard Duty Rock Bucket:

  • Width Profiles: 60″, 66″, 72″, 78″, and 84″ spans.

  • Tine Profiles: Spaced 2″ or 3″ apart to handle light surface sorting behind lower-horsepower wheeled loaders.

• Heavy Duty Rock Bucket:

  • Structural Composition: Thickened high-carbon steel tines coupled with robust rear containment backs. Rated for standard everyday construction cleanup applications.

• X-Treme Duty Rock Bucket:

  • Structural Composition: Upgraded with solid 1/2″ thick tines, thick side plating, and reinforced front comb structures to survive continuous rock quarrying and deep prying.

7. Comparative Analysis: Structural & Duty Tier Classifications

Choosing the right duty tier prevents machine damage, preserves front-axle seals, and ensures your attachment matches the host loader’s breakout force.

8. Frequently Asked Questions (FAQ)

Q: Why are exact volume capacities variable across different bucket models?

A: Material handlers like the High Dump (31.75 ft3 for the 84″ model) and the High Capacity Snow-N-Litter lines are given clear volume specifications because their primary job is bulk material containment. In contrast, attachments like Rock Buckets, 4-in-1 units, and Stump Buckets are built for structural prying, sorting, and mechanical clamping rather than strict volumetric material hauling.

Q: What makes CID Attachments a premium choice for state or municipal fleet bids?

A: Every CID attachment is laser-cut, precision jigged, and welded right in Denton, North Carolina. We finish our components with a resilient commercial powder coat and use high-stress AR400-grade wear components to ensure our attachments reliably support DOT and municipal maintenance operations.

Need to finalize a municipal contract or find a local authorized equipment dealer? Contact your regional CID Attachments representative today to select the optimal bucket configuration for your fleet.
